Awq-104L Point Locator And Stimulator

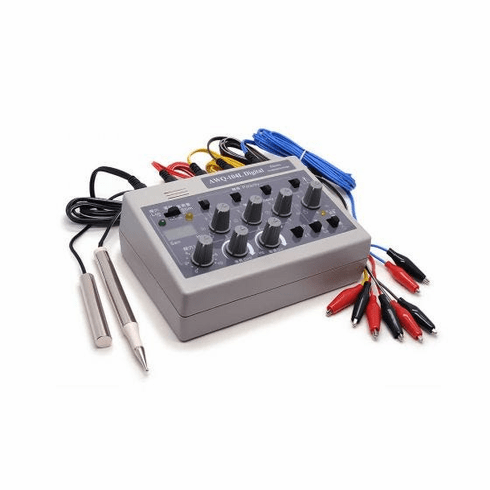

AWQ-104L Four Output Locator and Stimulator Unit with Digital Display
The WQ-104L is the latest improved version of the multipurpose WQ-10 electro-therapy series from China, now with 4 outputs and large 0.5" x 0.9" LCD digital meter which displays both frequency and point location.
The WQ-104L is able to display and fine tune frequency selection through two separate ranges: 1 to 100 Hz (low) and 10 to 1,000 Hz (High). When in point location mode (Loc), a relative digital reading from 1 to 150 (for the point being measured) is also displayed on this same meter. Location is also indicated by sound and light.
The WQ-104L Unit also features: 4 independently controlled output channels which provide stimulation to 8 needles, polarity reversal [i.e. tonification (+) and sedation (-)] switches for each channel, Hi/Low voltage switch, and 2 frequency ranges (X1, X10). New integrated circuitry assures no interference or crossover.
The WQ-104L is also capable of delivering micro-current when the intensity is set just below the sensorial threshold level. Powered by 9 volt battery. The "Loc" or "Stim" settings allow the hand held probe to either locate or treat points. The output and polarity of this hand probe are both regulated by Intensity Dial 1. Three adjustable pulse modes are also offered: continuous, intermittent (discontinuous), and dense-disperse.
Accessories include 5" long pen shaped search/treat probe with hand ground pole and wire, 4 sets of alligator clip wires, sturdy carrying case, 9 volt battery, and instructions. 1 year warranty from date of purchase.
