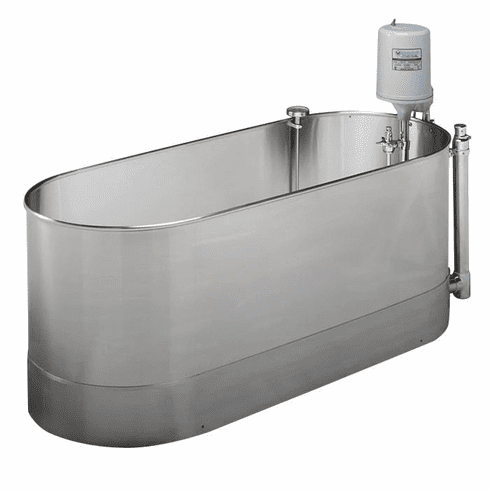

Lo-Boy Stationary Whirlpool Model L-90-S by Whitehall
Whitehall L-90-S Lo-Boy Stationary Whirlpool is recommended for treatment of extremities, hip and back area and allows space for exercising.
The Whitehall L-90-S stationary whirlpools are recommended for treatment of extremities, hip, and back area and allow space for exercising.
SpecificationsTank Length 60" (1,525 mm)
Tank Width 24" (610 mm)
Tank Depth 18" (455 mm)
Tank Height 24" (610 mm)
Tank Capacity 90 Gallon (340.68 liters)
Whitehall Whirlpool Tank is 60"L x 24"W x 18"D and is seamless welded construction, fabricated from heavy gauge, type 304 stainless steel, polished to a satin finish. Tank rim is reinforced with a concealed stainless steel rod. Tank is fitted with an auxiliary drain valve. Tank bottom is seamless, rounded coved design to minimize bacteria buildup. Tank is also provided with an extended stainless steel skirt flush to the floor line to conceal internal drain piping.
A 2" Combination Drain and Overflow, and a Filler Spout are provided.
Turbine Raising and Lowering Device permits adjustment of desired height and direction of water agitation towards the area of the body to be treated. It is spring balanced and provided with a locking device.
Turbine Assembly functions both as agitator and emptying device. It is equipped with Underwriters Laboratory listed 1/2 HP jet pump motor protected with an ABS plastic shell, and automatic thermal overload protector, and lifetime-sealed bearings. All parts contacting the water are stainless steel, chrome plated brass or bronze.
Thermometer is provided with a dual scale, adjustable calibration, and a stem inserts into a retainer to prevent rattle during whirlpool agitation.
Whirlpools are shipped by truck/tail gate delivery.
RESIDENTIAL, CONSTRUCTION SITE, SCHOOL SITE, LIMITED ACCESS, LIFTGATE, INSIDE DELIVERY ARE EXTRA - contact us for freight charges.
The Whitehall L-90-S stationary whirlpools are recommended for treatment of extremities, hip, and back area and allow space for exercising.
Specifications
Whitehall Whirlpool Tank is 60"L x 24"W x 18"D and is seamless welded construction, fabricated from heavy gauge, type 304 stainless steel, polished to a satin finish. Tank rim is reinforced with a concealed stainless steel rod. Tank is fitted with an auxiliary drain valve. Tank bottom is seamless, rounded coved design to minimize bacteria buildup. Tank is also provided with an extended stainless steel skirt flush to the floor line to conceal internal drain piping.
A 2" Combination Drain and Overflow, and a Filler Spout are provided.
Turbine Raising and Lowering Device permits adjustment of desired height and direction of water agitation towards the area of the body to be treated. It is spring balanced and provided with a locking device.
Turbine Assembly functions both as agitator and emptying device. It is equipped with Underwriters Laboratory listed 1/2 HP jet pump motor protected with an ABS plastic shell, and automatic thermal overload protector, and lifetime-sealed bearings. All parts contacting the water are stainless steel, chrome plated brass or bronze.
Thermometer is provided with a dual scale, adjustable calibration, and a stem inserts into a retainer to prevent rattle during whirlpool agitation.
Whirlpools are shipped by truck/tail gate delivery.
RESIDENTIAL, CONSTRUCTION SITE, SCHOOL SITE, LIMITED ACCESS, LIFTGATE, INSIDE DELIVERY ARE EXTRA - contact us for freight charges.
