921 Sonicator - Two-Channel Combination Stimulator With Ultrasound By Mettler Electronics

921 Sonicator - Two-Channel Combination Stimulator With Ultrasound By Mettler Electronics

Model:mettler921
$2,881.50
Save $508.50
Was $3,390.00
Optional-Cart:
−+
Total Price:

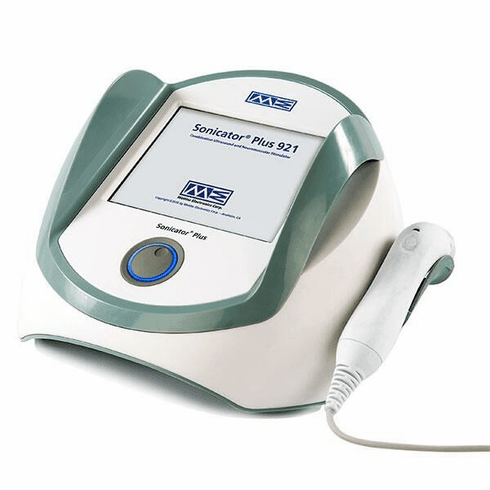

The Mettler Electronics Sonicator Plus 921 is a two-channel combination stimulator with ultrasound that features a touchscreen and six waveforms to choose from. Customers can also choose to include a cart.

Warranties:

  • Standard Unit: 2 Years.
  • Unit with Cart Included: 3 Years.

    The Mettler Sonicator Plus 921 is equipped with a touchscreen and is user-friendly.

  • It offers six waveforms for analysis, including Interferential, Premodulated, EMS, Russian, TENS, and High Voltage.
  • The control knob on the device is used to adjust the intensity of the stimulation, or the precision and accuracy of the ultrasound. Clinicians can change the treatment parameter at anytime before or during a treatment. For assistance, the device offers an anatomical library for proper electrode placement and other recommendations. If the clinician wishes to record and store their own treatment protocols, there are 50 spaces available on the device storage.

    Mettler Sonicator Plus 921 Features
  • Includes six waveforms and anatomical protocols for assistance.
  • Space for 50 user-defined protocols.
  • Touchscreen and intensity control knob are user-friendly.
  • Optional cart can be purchased.
  • Mettler Sonicator Plus 921 Specifications

    General Specifications
  • Input: 120 V, 60 Hz (domestic), 140 VA.
  • Weight: 7.7 lb.
  • Dimensions: 13.8" (W) x 10.6" (D) x 5.7" (H).
  • Channels: 2 stimulation, 1 ultrasound.

    Maximum Treatment Time:
  • 60 minutes - electrical stimulation.
  • 30 minutes - ultrasound or combination therapy.

    Ultrasound Specifications
  • Frequency: 1.0 and 3.0 MHz.

    Modes:
  • Continuous.
  • Pulsed: 5, 10, 20, 30, 40, and 50% duty cycles.
  • Pulse Frequency: 16, 48, and 100 Hz.

    Electrical Stimulation Specifications:
  • Waveform Types: Interferential, premodulated, EMS, Russian, High Volt, TENS, Microcurrent and Direct Current.

    Current:
  • Interferential: 0.5 - 100 mA peak, 500 ohm load, CC or CV
  • Premodulated: 0.5 - 100 mA peak, 500 ohm load, CC or CV.
  • EMS: 0.5 - 100 mA peak, 500 ohm load, CC or CV.
  • Russian: 0.5 - 100 mA peak, 500 ohm load, CC or CV.
  • High Volt: 0.5 - 300 V peak, 500 ohm load (no mA stated), CV only.
  • TENS: 0.5 - 100 mA peak, 500 ohm load, CC or CV.
  • Microcurrent: 10 - 750 uA peak, 500 ohm load, CC only.
  • Direct Current: 0.2 - 20 mA peak, 500 ohm load, CC or CV.

    Frequency:
  • Interferential: 2, 4, 5, 8, and 10 kHz (1~250 beats) (Constant, Sweep).
  • Premodulated: 2, 4, 5, 8, and 10 kHz (1~250 beats) (Constant, Sweep).
  • EMS: 2, 4, 5, 8, and 10 kHz (20 to 250 beats in 10 beat steps).
  • Russian: 2500 Hz, Burst 10 to 100%.
  • High Volt: 0.5 to 200 Hz (Constant, Burst, Sweep).
  • TENS: 0.5 to 200 Hz (Constant, Burst, Sweep).
  • Microcurrent: 0.2 to 400 Hz
  • Direct Current: None or 60 - 100 ms pulses.

    Special Features:
  • Interferential: Vector Sweep Angle - 0, 15, 30, and 45 degrees.
  • Premodulated: None
  • EMS: Independent, Simultaneous, Alternate.
  • Russian: Independent, Simultaneous, Alternate.
  • High Volt: Independent, Simultaneous, Alternate.
  • TENS: Independent, Simultaneous, Alternate.
  • Microcurrent: None.
  • Direct Current: None, or 60, 100, 300, 500, or 1000 ms pulses.

    Polarity:
  • Interferential: None.
  • Premodulated: None.
  • EMS: None.
  • Russian: None.
  • High Volt: Positive, negative, or both.
  • TENS: Positive, negative, or none, sym.l or asym. biphasic.
  • Microcurrent: Positive, negative, or both.
  • Direct Current: Positive, negative.

    Mettler Sonicator Plus 921 Configurations
  • #ME 921: Standard Unit
  • #ME 921C: Standard Unit with Cart included.
