941 Sonicator - Four-Channel Stimulator With Ultrasound Component By Mettler Electronics

941 Sonicator - Four-Channel Stimulator With Ultrasound Component By Mettler Electronics

Item#Mettler941
$3,890.00
$3,306.50
Optional-Cart:
+
Total Price:

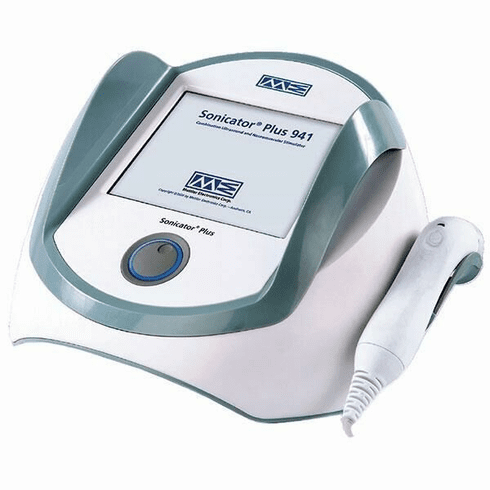

The Mettler Electronics Sonicator Plus 941 is a four-channel stimulator with ultrasound component. It's available with or without a cart.

Warranties:

Standard Unit: 2 Years. Unit with Cart Included: 3 Years. The Mettler Sonicator Plus 941 is equipped with six waveforms: Interferential, Premodulated, EMS, Russian, TENS, and High Voltage. The software included is easy to use to quick to set up and calibrate for precision and accuracy. The eight-inch color touchscreen is bright and user-friendly. Before or during treatment, clinicians can adjust the intensity of the stimulation or the accuracy of the ultrasound via the control knob on the device.

While treatment parameters can be changed at any time during treatment, clinicians can also choose to record and store their own protocols with descriptions. There's ample storage for up to 50 user defined protocols. In addition, the device includes an anatomical library to assist with proper electrode placement and other recommendations.

The optional treatment cart allows for the Sonicator Plus 941 to be more mobile for busy clinics.

Mettler Sonicator Plus 941 Features Four-channel stimulator with ultrasound component. Equipped with six waveforms: Interferential, Premodulated, EMS, Russian, TENS, and High Voltage. Includes eight inch color touchscreen and intensity control knob. Storage for up to 50 user defined protocols. Optional treatment cart allows for mobility. Mettler Sonicator Plus 941 Specifications General Specifications

Input: 120 V, 60 Hz (domestic), 140 VA. Weight: 8.8 lb. Dimensions: 13.8" (W) x 10.6" (D) x 5.7" (H). Channels: 4 stimulation, 1 ultrasound. Maximum Treatment Time: 60 minutes - electrical stimulation. 30 minutes - ultrasound or combination therapy. Ultrasound Specifications

Frequency: 1.0 and 3.0 MHz. Modes:
  • Continuous.
  • Pulsed: 5, 10, 20, 30, 40, and 50% duty cycles.
  • Pulse Frequency: 16, 48, and 100 Hz.

    Electrical Stimulation Specifications:

  • Waveform Types: Interferential, premodulated, EMS, Russian, High Volt, TENS, Microcurrent and Direct Current.

    Current:
  • Interferential: 0.5 - 100 mA peak, 500 ohm load, CC or CV
  • Premodulated: 0.5 - 100 mA peak, 500 ohm load, CC or CV.
  • EMS: 0.5 - 100 mA peak, 500 ohm load, CC or CV.
  • Russian: 0.5 - 100 mA peak, 500 ohm load, CC or CV.
  • High Volt: 0.5 - 300 V peak, 500 ohm load (no mA stated), CV only.
  • TENS: 0.5 - 100 mA peak, 500 ohm load, CC or CV.
  • Microcurrent: 10 - 750 uA peak, 500 ohm load, CC only.
  • Direct Current: 0.2 - 20 mA peak, 500 ohm load, CC or CV.

    Frequency:
  • Interferential: 2, 4, 5, 8, and 10 kHz (1~250 beats) (Constant, Sweep).
  • Premodulated: 2, 4, 5, 8, and 10 kHz (1~250 beats) (Constant, Sweep).
  • EMS: 2, 4, 5, 8, and 10 kHz (20 to 250 beats in 10 beat steps).
  • Russian: 2500 Hz, Burst 10 to 100%.
  • High Volt: 0.5 to 200 Hz (Constant, Burst, Sweep).
  • TENS: 0.5 to 200 Hz (Constant, Burst, Sweep).
  • Microcurrent: 0.2 to 400 Hz
  • Direct Current: None or 60 - 100 ms pulses.

    Special Features:
  • Interferential: Vector Sweep Angle - 0, 15, 30, and 45 degrees.
  • Premodulated: None
  • EMS: Independent, Simultaneous, Alternate.
  • Russian: Independent, Simultaneous, Alternate.
  • High Volt: Independent, Simultaneous, Alternate.
  • TENS: Independent, Simultaneous, Alternate.
  • Microcurrent: None.
  • Direct Current: None.

    Polarity:
  • Interferential: None.
  • Premodulated: None.
  • EMS: None.
  • Russian: None.
  • High Volt: Positive, negative, or both.
  • TENS: Positive, negative, or none, sym.l or asym. biphasic.
  • Microcurrent: Positive, negative, or both.
  • Direct Current: Positive, negative.

    Mettler Sonicator Plus 941 Configurations
  • #ME 941: Standard Unit
  • #ME 941C: Standard Unit with Cart included.
