Whitehall S-90-S Stationary Whirlpool is recommended for treatment and prevention of sports injuries allowing coverage of the extremities, hips and back area. Professional, college and high school athletic trainers find the larger design most suitable when treating today's athletes.
The S-90-S stationary whirlpool is specifically designed for the treatment and prevention of sports-related injuries.
The unit offers recuperative and healing therapy to the extremities, hips, back, and shoulder areas of athletes.
SpecificationsTank Length 46" (1,170 mm)
Tank Width 24" (610 mm)
Tank Depth 25" (685 mm)
Tank Height 31" (785 mm)
Tank Capacity 90 Gallon (340.68 liters)

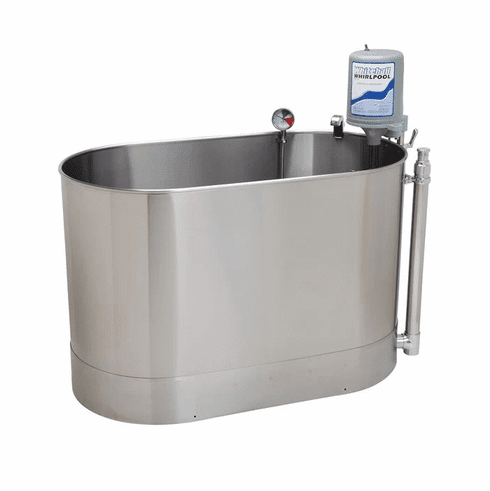

Whitehall Whirlpool Tank is 46"L x 24"W x 25"D and is seamless welded construction, fabricated from heavy gauge, type 304 stainless steel, polished to a satin finish. Tank rim is reinforced with a concealed stainless steel rod. Tank is fitted with an auxiliary drain valve. Tank bottom is seamless, rounded coved design to minimize bacteria buildup. Tank is also provided with an extended stainless steel skirt flush to the floor line to conceal internal drain piping.
A 2" Combination Drain and Overflow, and a Filler Spout are provided. (See roughing-in dimensions on drawing).
Turbine Raising and Lowering Device permits adjustment of desired height and direction of water agitation towards the area of the body to be treated. It is spring balanced and provided with a locking device.
Turbine Assembly functions both as agitator and emptying device. It is equipped with Underwriters Laboratory listed 1/2HP jet pump motor protected with an ABS plastic shell, and automatic thermal overload protector, and lifetime-sealed bearings. All parts contacting the water are stainless steel, chrome plated brass or bronze.
Thermometer is provided with a dual scale, adjustable calibration, and a stem inserts into a retainer to prevent rattle during whirlpool agitation.
Whirlpools are shipped by truck/tail gate delivery.
