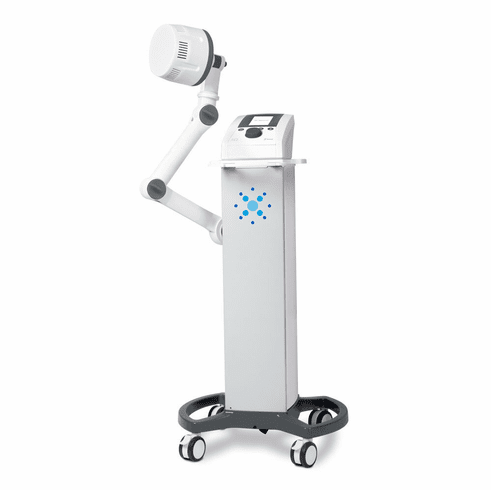

TheraTouch® DX2 Shortwave Diathermy by Richmar

TheraTouch® DX2 Shortwave Diathermy by Richmar introduces several new advancements in safety, convenience, and efficiency compared to other shortwave diathermy devices.

Features and Benefits

SCIENTIFIC DOSAGE CONTROL (SDC) allows for two additional dosimetry settings within Dose III to provide more options for therapeutic heating within patient comfort tolerances.
DOSE I - Subthermal
DOSE II - Mild Heat
DOSE III - Low Heat
DOSE III SDC M - Moderate Heat
DOSE III SDC H - High Heat
DOSE IV - Vigorous Heat

High Efficiency Auto-Tuning (H.E.A.T.)
Resonant auto-tuning technology continually measures and adjusts to changes in the patient's impedance to provide maximum energy transmission, resulting in faster heating and shorter treatment times

Microcirculation Indication is an exclusive parameter found in the DX2's Quick Link library to enhance tissue healing, based on studies of subthermal pulsed shortwave diathermy

Anatomical Treatment Guide for easy monode placement

Save up to 99 user-defined favorites

9 evidence-based Quick Links by Indication

Qualitative Thermal Dosimetry with six settings included

Easy to use, touch-screen interface

USB port for easy software upgrades

Dual treatment indicators on unit and inductive drum

3 year warranty

STANDARD ACCESSORIES

DQSWD2-D : Coil Monode Drum (14cm)

DQSWD2-DC : Coaxial Cable for Coil Monode Drum

DQSWD2-MA : Mechanical Arm

TECHNICAL SPECIFICATIONS

Continuous Mode Output : 100W Average Power at 50Ω output

Pulsed Mode Output : 200W Peak Power at 50Ω output

Power : 100-240 V ~; 50/60 Hz

Output Frequency : 27.12 MHz 0.6%

Power Increment Settings : .5 W

Pulse Width : 20 - 400 μsec in 20 μsec increments

Pulse Frequencies : 10 - 800 Hz in 10 Hz increments

Treatment Duration : 1 - 30 min in 1 min increments

Electrical Class : CLASS I

Electrical Type : TYPE BF

Regulatory Risk Class : IIb according to MDD 93/42/EEC
