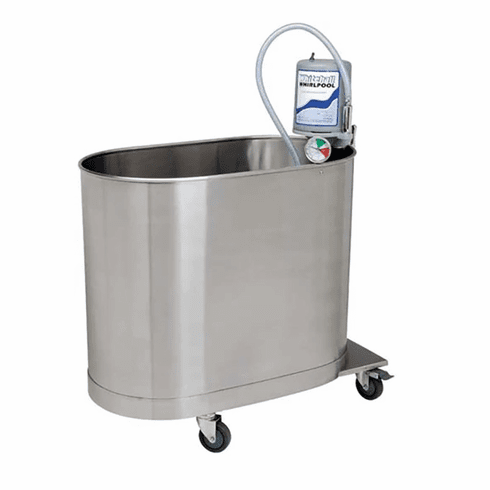

Whirlpool Hi-Boy Mobile Model H-90-M by Whitehall
Whitehall H-90-M Mobile Whirlpool is recommended for shallow or deep body immersion offering complete coverage of extremities as well as the entire back and shoulder area with greater patient comfort.
The H-90-M mobile whirlpools are recommended for shallow or deep body immersion offering complete coverage of the extremities as well as the entire back and shoulder area with greater patient comfort.
SpecificationsTank Length 48" (1,220 mm)
Tank Width 20" (510 mm)
Tank Depth 28" (710) mm)
Tank Height 35" (890 mm)
Tank Capacity 90 Gallon (340.68 liters)
Whitehall Whirlpool Tank is 48"L x 20"W x 28"D and is seamless welded construction, fabricated from heavy gauge, type 304 stainless steel, polished to a satin finish. Tank rim is reinforced with a concealed stainless steel rod. Tank is fitted with an auxiliary drain valve. Tank bottom is a seamless, rounded covered design to minimize bacteria buildup.
Heavy Duty Swivel Casters support all mobile models. Rear pair of casters are lockable for stabilizing whirlpool during treatment.
Turbine Raising and Lowering Device permits adjustment of desired height and direction of water agitation towards the area of the body to be treated. It is spring balanced and provided with a locking device.
Turbine Assembly functions both as agitator and emptying device. It is equipped with Underwriters Laboratory listed 1/2 HP jet pump motor protected with an ABS plastic shell, and automatic thermal overload protector, and lifetime-sealed bearings. All parts contacting the water are stainless steel, chrome plated brass or bronze.
Thermometer is provided with a dual scale, adjustable calibration, and a stem inserts into a retainer to prevent rattle during whirlpool agitation.
Whirlpools are shipped by truck/tail gate delivery.
RESIDENTIAL, CONSTRUCTION SITE, SCHOOL SITE, LIMITED ACCESS, LIFTGATE, INSIDE DELIVERY ARE EXTRA - contact us for freight charges.
The H-90-M mobile whirlpools are recommended for shallow or deep body immersion offering complete coverage of the extremities as well as the entire back and shoulder area with greater patient comfort.
Specifications
Whitehall Whirlpool Tank is 48"L x 20"W x 28"D and is seamless welded construction, fabricated from heavy gauge, type 304 stainless steel, polished to a satin finish. Tank rim is reinforced with a concealed stainless steel rod. Tank is fitted with an auxiliary drain valve. Tank bottom is a seamless, rounded covered design to minimize bacteria buildup.
Heavy Duty Swivel Casters support all mobile models. Rear pair of casters are lockable for stabilizing whirlpool during treatment.
Turbine Raising and Lowering Device permits adjustment of desired height and direction of water agitation towards the area of the body to be treated. It is spring balanced and provided with a locking device.
Turbine Assembly functions both as agitator and emptying device. It is equipped with Underwriters Laboratory listed 1/2 HP jet pump motor protected with an ABS plastic shell, and automatic thermal overload protector, and lifetime-sealed bearings. All parts contacting the water are stainless steel, chrome plated brass or bronze.
Thermometer is provided with a dual scale, adjustable calibration, and a stem inserts into a retainer to prevent rattle during whirlpool agitation.
