Ems 7500

EMS 7500 by Compass

Model:115B
$69.95
Save $50.05
Was $120.00
Additional-2"x2"-Electrodes:
Additional-2"x3.5"-Electrodes:
Replacement Cords:
−+
Total Price:

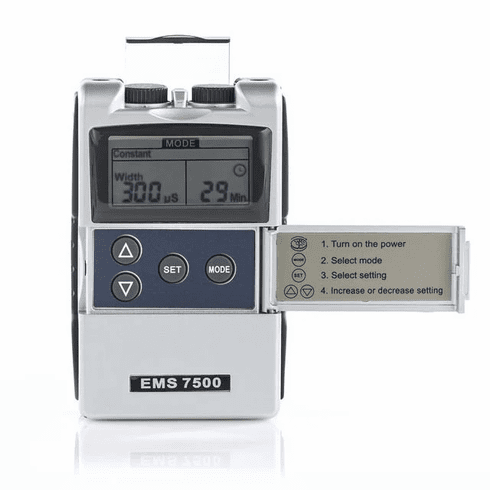

EMS 7500

The EMS 7500 is our nicest and most powerful (100mA) EMS unit. EMS 7500 2nd edition's features include, Dual Channel, 3 modes, Timer, Patient Compliance Meter, New Stronger 100mA output, safety amplitude cover, sturdy metal belt clip, rubber side railings for maximum handling and a premium silver finish.


FREE Shipping on Our TENS Units* and Self Adhering Electrodes

Features Include:
  • Channels: Dual Channel, isolated between channels
  • Pulse Amplitude: Adjustable, 0-100 mA peak into 500 ohm load each channel.
  • Voltage: 0 - 50V (Load: 500 ohm)
  • Pulse Rate: Adjustable, from 2 to 150 Hz, 1 Hz/step
  • Pulse Width: Adjustable, from 50 to 300 microseconds, 10uS/step
  • Wave Form: Asymmetrical Bi-Phasic Square Pulse
  • On Time: Adjustable, 2~90 seconds , 1 Sec./ step
  • Off Time: Adjustable, 2~90 seconds , 1 Sec./ step
  • Ramp Time: Adjustable, 1~8 seconds, 1 Sec./ step, The "On" time will increase and decrease in the setting value.
  • 3 Modes: Constant ,Synchronous, Alternate
  • Constant stimulation based on setting value. Only pulse width, pulse rate and timer are adjustable in this mode. "Constant" is equal to the "Normal" mode of a TENS unit.
  • Synchronous: Stimulation of both channels occurs synchronously. The "ON" time including "Ramp Up" and "Ramp Down" time. Therefore, the setting of ON Time should be no less than two times of the "Ramp" time in this mode. ON TIME � ƒnRamp up + Ramp down
  • Alternate: The stimulation of the CH2 will occur after the 1st contraction of CH1 is completed. In this mode, the setting of ON Time should be no less than two times of the "Ramp" time. The OFF Time should be equal or more than the ON Time. ON TIME � ƒnRamp up + Ramp down OFF TIME � ƒnON.
  • Patient Compliance Meter: This unit can store 60 sets of operation records. Total recorded time is 999 hours.
  • Timer: Adjustable, from 5 to 60 minutes or Continuous. Adjustable in 5 minutes each step. Treatment time countdown automatically.
  • 3 Year Manufacturer Warranty
  • System Includes: Stimulator, Lead Wires, 1 package of high quality Self-Adhesive Electrodes, 9V Battery, Hard Plastic Carrying Case, Instruction Booklet.

    Don't forget to order extra electrodes when you order you order your TENS unit.
