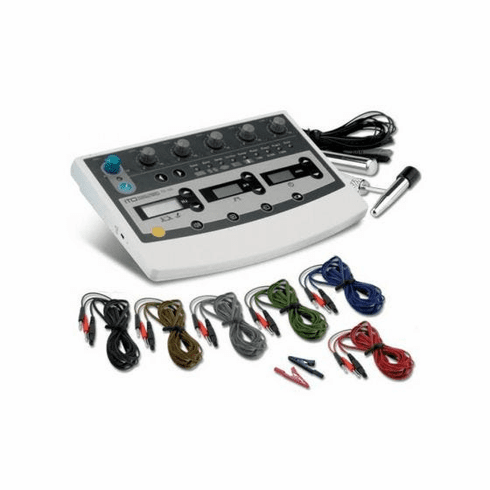

ITO ES-160 Six Output Locator & Stimulator
The latest most advanced technology, 6 output unit from Japan. Compact, attractive, lightweight, sturdy and desk size. Provides 8 stimulation modes, saves 5 previous treatment parameters, and incorporates 16 programmable memory settings. Three LCD displays (0.6"x1.4"and 0.6"x1.1") show point search sensitivity, frequency (Hz), pulse width, program modes, memory data, treatment time(minutes), and battery life.
The hand probe includes a search-to-treat push button selector on the probe itself. Point location is indicated on the LCD display and is regulated with the sensitivity dial. Also allows measurement and storage of Ryodororaku points (6, 12, or 21 volts).
Safety features include self-test, zero start, automatic power-off if unit is left unused for 5 minutes, sound on/off function, emergency stop button, tone signaling end of treatment, and high/low (H/L) switch on side of unit.
Accessories include search/stimulation probe, 6 electrode cords (assorted colors), 12 alligator clip-on (6 red/6 black), and operation manual. Does not include batteries.
Specifications: 500 ohm test loadOutput channels: 6(stimulates 12 points)
Volts & current: Low/0 to 8 volts, 0 to 16 mA(milliamp)
High/0 to 16 volts, 0 to 32 mA Pen probe/0 to 24 volts, 0 to 58 mA
Pulse shape: symmetric, bi-phasic square wave
Pulse width: 50 to 400 us, adjustable
Pulse mode/frequency:
Constant: 0.5 * 0.7 * 1 to 500 Hz
Burst: 0.5 * 0.7 * 1 to 7 bursts (carrier freq 100 Hz)
Surge: on time 4 sec, off time 6 sec (carrier freq 5 to 500 Hz)
Fast-Slow: 1 to 500 Hz (slow=fast freq/3)
Sweep: 1 to 500 Hz (slow=fast freq/3)
Random prog. 1: 1 to 6 Hz, preset program
Random prog. 2: 30 to 100 Hz, preset program
Random prog. 3: 2 to 100 Hz, preset program
Timer: 0 to 60 minutes
Point detection: LCD meter (0 to 200 scale) with sound on/off function
Power source: 4 standard 1.5 volt C batteries (meter displays battery life)
Frequency indicator: LCD meter with sound on/off
Size,Weight: 9.4" x 6.8" x 2.0", 560 grams
