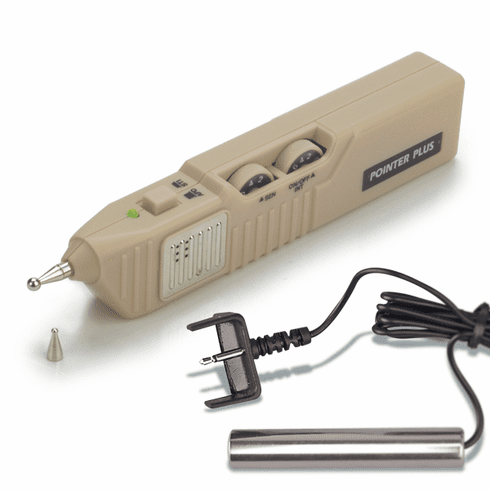

Pointer Plus Locator/Stimulator
Pointer Plus Locator/Stimulator
This is a complete clinic in your hands. Modern, hand held, 6.5" long unit offers sensitive acu-point or trigger point location and stimulation. Location and stimulation are independently adjusted with two separate control dials. The pulse frequency is fixed at 10 Hz. A flashing light and sound indicate when point detection is made. The spring activated detection probe allows a uniform pressure when searching. The grounding circuit is made by holding the metal plate on the side of the unit or with the hand grounding pole. Accessories include 2 probe tips (ear 2 mm 0.08" and body 4 mm 0.16"), hand grounding pole with attached wire, 9 volt battery, carrying case and instructions.
Specifications: 500 ohm test loadFrequency: 10 Hz (fixed
Volts & current: 0-25 volts, o to 50 milliamps
Pulse width: 220 microseconds
Pulse shape: asymmetric biphasic square wave
Pulse modes: continuous
Pulse detection: sound and light indication
Freq indicator: flashing green light
Power source: 9 volt battery
Size: 6.5"x1.3"x0.9"
This is a complete clinic in your hands. Modern, hand held, 6.5" long unit offers sensitive acu-point or trigger point location and stimulation. Location and stimulation are independently adjusted with two separate control dials. The pulse frequency is fixed at 10 Hz. A flashing light and sound indicate when point detection is made. The spring activated detection probe allows a uniform pressure when searching. The grounding circuit is made by holding the metal plate on the side of the unit or with the hand grounding pole. Accessories include 2 probe tips (ear 2 mm 0.08" and body 4 mm 0.16"), hand grounding pole with attached wire, 9 volt battery, carrying case and instructions.
Specifications: 500 ohm test load
